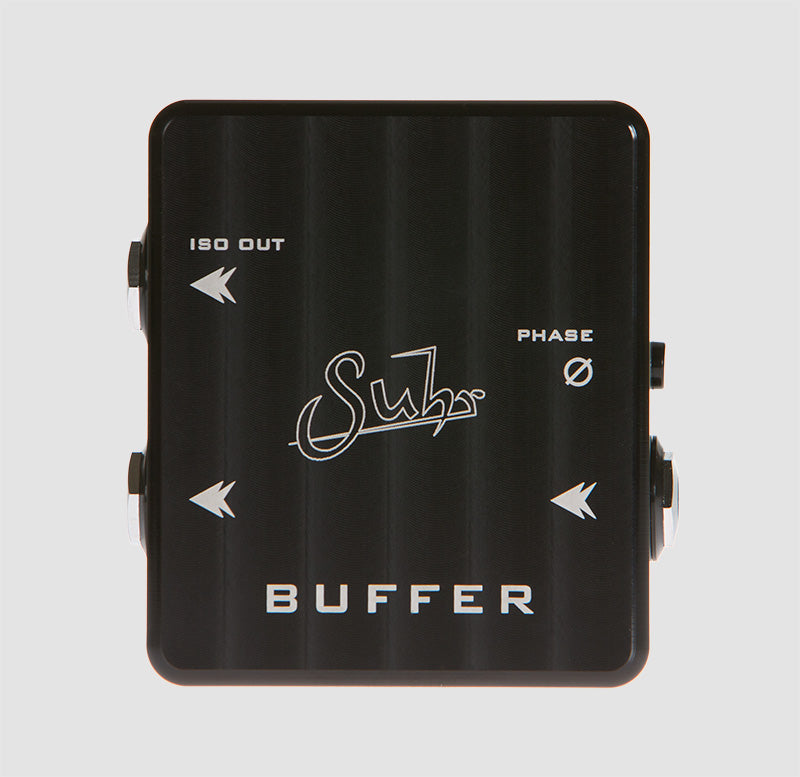

Suhr Buffer Effect Pedal

Today’s players demand quality, reliability and great tone. To ensure that your investment in tone is preserved throughout your signal chain, the Suhr Buffer utilizes only the highest quality components such as: low noise audiophile Op-Amps, Glass Epoxy PCB, and a machined billet aluminum enclosure. When it comes to quality and reliability, we designed the Suhr Buffer with the same attention to detail as all of our award winning products including the Badger, Hand Wired and OD series amplifiers.

OPERATION

DC INLET: Use a compatible 9-18Vdc with a center negative power supply.
INPUT: Instrument Input, use this jack to connect to your instrument.
OUTPUT: Primary output, use this jack to connect to an amplifier or effect device.
ISO OUTPUT (transformer isolated): Secondary output, use this to split your instrument’s signal to an additional amplifier or sound source.
PHASE SWITCH (ø): The Phase Switch reverses the polarity of the Buffer’s ISO Output by 180º. Activate this switch to keep both output sources in phase.
OUT- Normal (non-reversed)
IN- Signals phase reversed by 180º
